Graf Zeppelin 1/500 scale German recognition model complete

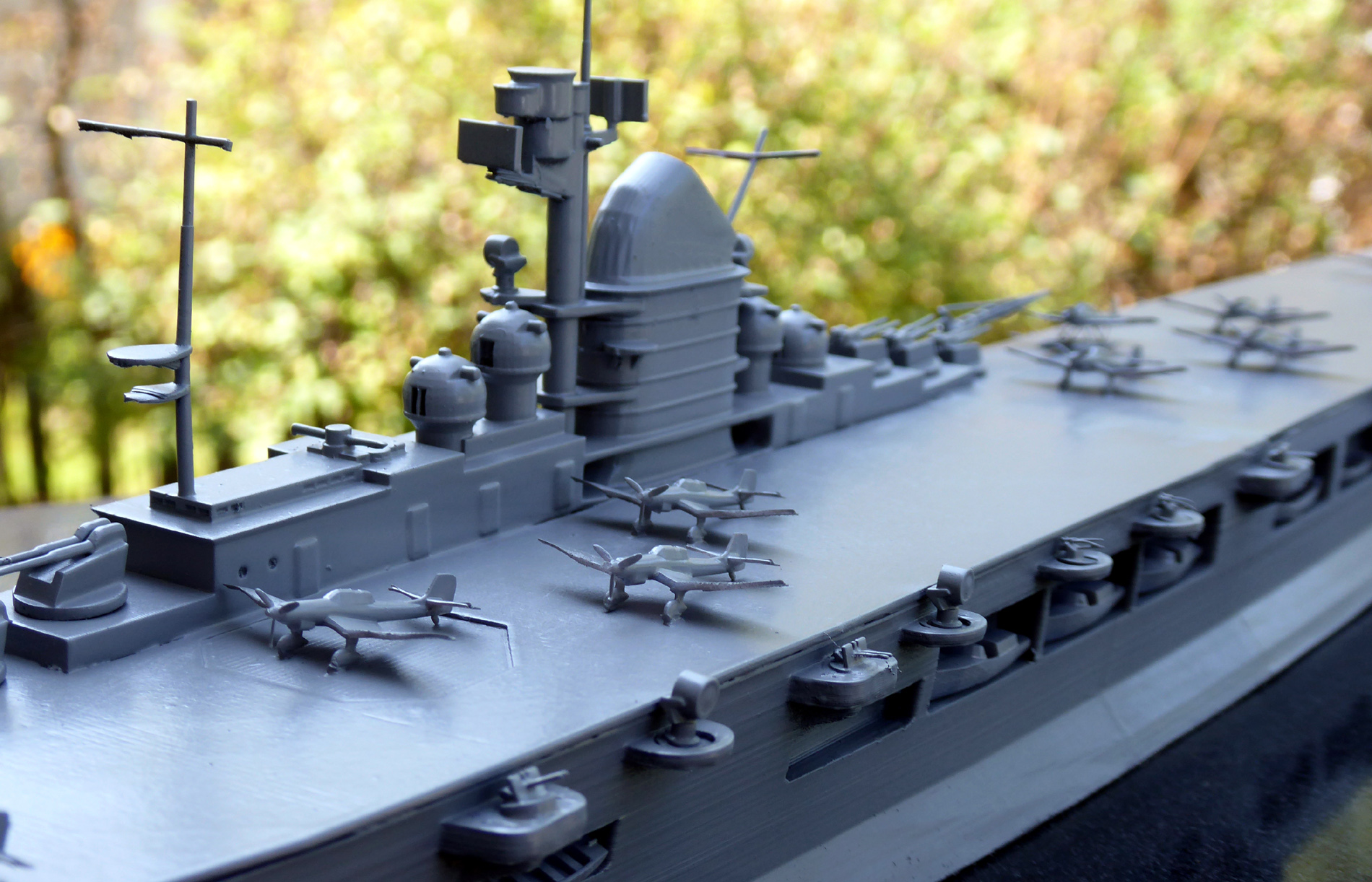

My Graf Zeppelin German aircraft carrier, is complete. She fits in well with the rest of the fleet. A faux WW2 recognition model, she probably has a bit more detail than a real one would’ve but I couldn’t resist, the under deck support details were just too cool to omit. She’s a whopper too, building out to about 21 inches. She was also the most difficult of my recognition replicas to design, her casemated guns were tricky and her high degree of bow flare that blends into the near vertical hanger deck sides took me a while to get right (or at least acceptable) . I actually printed a first draft on the Ender 3 that didn’t look right in hand – huge waste of filament!

I’m thinking I’ll only recreate one each of the light cruisers and destroyers that came in the original 1/500 scale German recognition set. Then I’ll call this project complete. But they’ll have to wait till spring for completion, winter has solidly set in and my resin printing is done in a shed. The Blender work will keep me busy for a bit and I’ve been off and on with a schnellboot design for almost a year…

German Admiral Scheer 1/500 scale ww2 recognition replica complete

Right on the heels of completing Scharnhorst, the design, printing, and assembly of my Admiral Scheer Pocket Battleship/Panzerschiff/Heavy Cruiser, WW2 recognition replica, was a piece of cake. Everything just came together and worked the first time.

My next design will be more challenging and diverges from the authentic 1/500 scale WW2 German recognition sets with a subject that I have always wanted to see included in them – the Graf Zeppelin Aircraft Carrier.

German battleship Scharnhorst 1/500 scale ww2 recognition replica complete

Scharnhorst is complete, I’ve been able to take advantage of a relatively warm weather window and print the resin parts for Scharnhorst, Scheer and Graf Zeppelin (GZ is actually still printing, again…). While recreating these recognition replicas has been a blast, I’m finding that without an example in hand, it’s difficult to stick to the original designs as seen from pictures on the web. I inevitably need actual pictures of the real ships to fill in the blanks and when I start designing from them, it’s painful to stop, and retain the often inaccurate design elements of the actual recognition models.

When I get all the ships completed I’ll likely make a project page to contain them all but for now this post is it for Scharnhorst.

Graf Zeppelin joins the German 1/500 scale, replica, recognition fleet

Aircraft Carrier Graf Zepplin joins the Blender recognition fleet

While waiting for a weather window to print the resin parts for Scharnhorst and Admiral Scheer I got a jump on the Graf Zeppelin’s Blender design. As was always her way, she’s not quite done yet! I did have a couple days in the low 50’s and after a totally preventable screw-up (I forgot to screw the vat down!) managed to get both their resin parts printed. The 10 day forecast says we’ll get warmish days in a week or so. With luck, I’ll get to print Graf Zeppelin’s resin before spring.

Should have Scheer and Scharnhorst built shortly. Recreating the WW2 German recognition set, has been a fun and fast project.

Update:
Links to posts for the now completed models mentioned above:
Admiral Scheer
Scharnhorst
Graf Zeppelin
